Cheap price 10 bags bundle drawing facial tissue V fold paper machine production line

Name: Cheap price 10 bags bundle drawing facial tissue V fold paper machine production line
Brand: XINYUN
Price: 100000 USD

Best Cheap price 10 bags bundle drawing facial tissue V fold paper machine production line wholesale

Brand Name : XINYUN

Model Number : XY-GU-A-A

Certification : CE

Place of Origin : CHINA

MOQ : 1 sets

Price : 100000 usd per production line

Payment Terms : T/T

Supply Ability : 500 sets per year

Delivery Time : 60-70 days

Packaging Details : Standard export wooden pallet

Voltage : 380V 50HZ

Condition : New

Product type : plastic bag facial paper machine

Warranty : 1 Year

Processing type : facial tissue paper production line

Weight : according to the model

After-sales service provided : Engineers available to service machinery overseas,Video technical support

Raw material : Jumbo Roll Paper

Application : Tissue Paper Production Line

Output paper : facial tissue paper

Production capacity : 60-100 meters/min

Capacity : 2 tons per 8 hours

Type : Paper Making Machines

Contact Now

Cheap price 10 bags bundle drawing facial tissue V fold paper machine production line

Technical performance characteristic:
This production line consists of :
XY-GU-20A Automatic transfer Facial Tissue Folding Machine,
XY-GU-281 Automatic Facial Tissue Cutting Machine
XY-BT-298 Automatic Facial Tissue Bag Packing Machine

XY-GU-26B Semi Automatic facial tissue bundle packing machine
From jumbo roll paper into the finished product, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing palstic bag facial tissue.

Cheap price 10 bags bundle drawing facial tissue V fold paper machine production line

1. XY-GU-20A Automatic Facial Tissue Folding Machine

Main functions
1. Each unit are control by servo motor ,can adjust different raw material ratio of expansion and contraction
2. Wallboard rack and fast machine running stability is excellent.
3. Pneumatic jumbo roll loading,pneumatic paper driving , Stepless speed ratio of adjustment ,and web tension control.
4. Equipped with roots type vacuum pump for stable running of the machine
5. Ink counting, simple and practical.
6. Equipped with edge embossing unit to keep the plies together
7. The machine will stop when the paper broken.It avoid waste caused by no paper or paper broken.
8. The web can be threaded on the machine by the two jog buttons,It's more safety and easier to thread the web.

Name	Automatic Facial Tissue Folding Machine
Speed	80-100m/min
Overall size(LWH)	850022502000mm
Weight of raw paper	(14-18)*2gsm
Power	35.3KW (380V,50HZ,3phase)

2. XY-GU-281 Automatic Facial Tissue Cutting Machine

High speed facial tissue cutting machine is an important component equipment of Box-drawing facial tissue production line , which can greatly improve the level of automation and production efficiency of the production line.
The machine is strong, beautifully designed, cut paper precise movements, rolls flat section, and smooth.

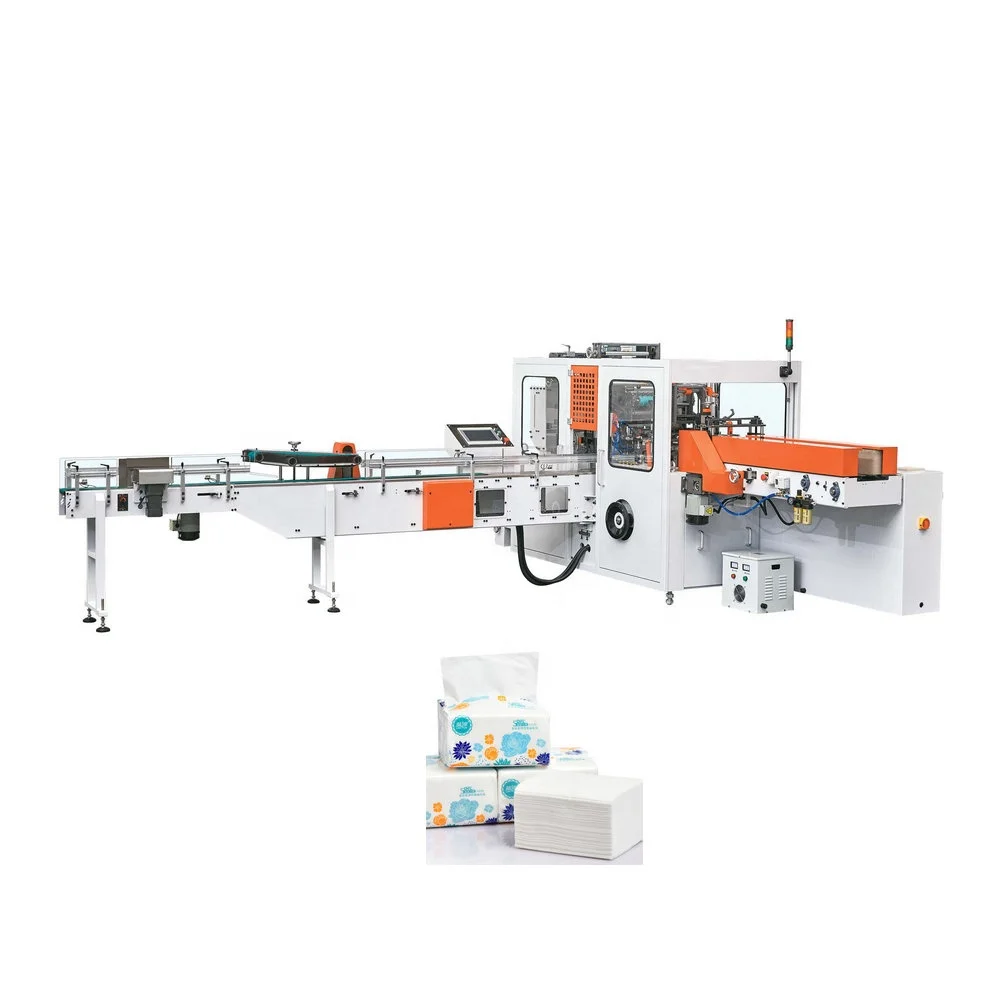

3. XY-BT-298 Automatic Facial Tissue Bag Packing Machine

Application: This machine is mainly used for Facial Tissue or Napkin Paper Packing.
Main performance and structure features:
1. Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
2. Adopt the controlling system of step-less frequency conversion, touching screen and PLC, clear display and easy maintenance.
3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving laboring cost.
4. Stepless-speed regulation with double transducer, automatically adjusting packing film length.
5. High auto immunization, high specialization, high efficiency and but less trouble.
6. Different sizes can be handled easily thanks to a fast and simple changeover facility.

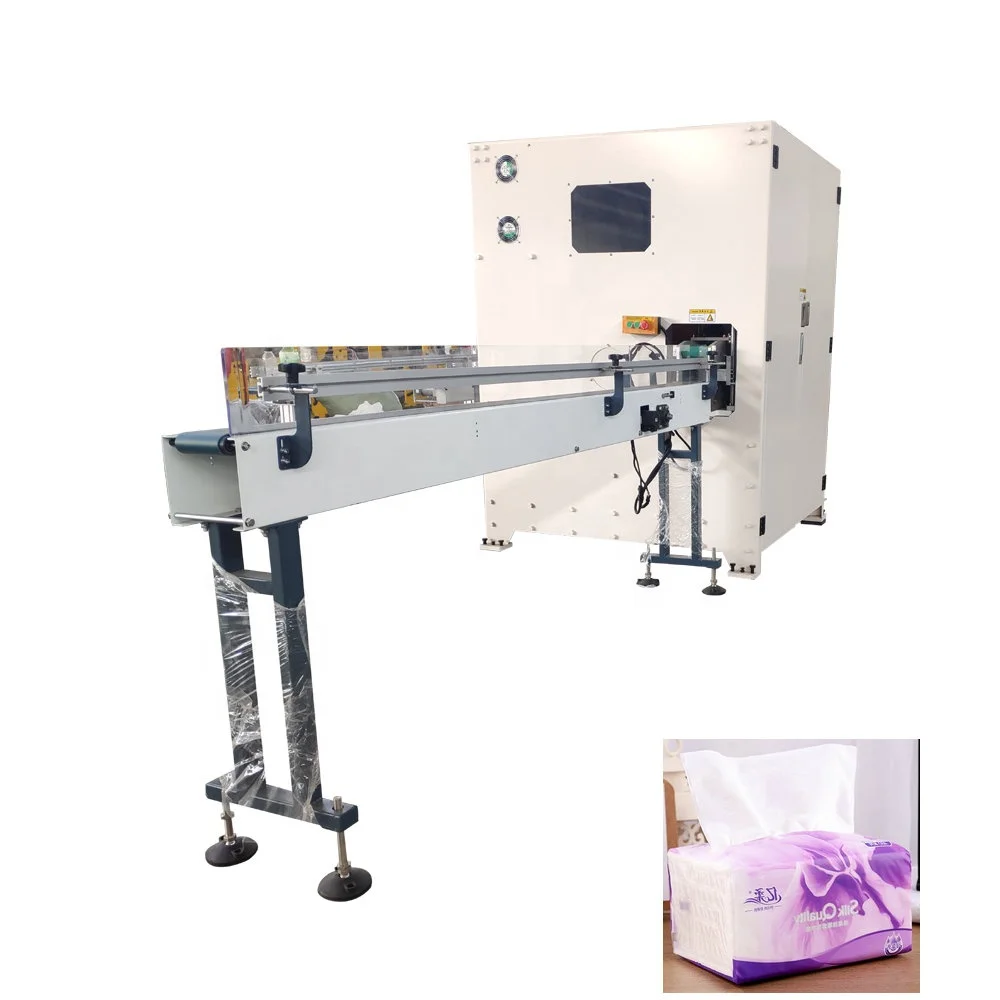

4. XY-GU-26B Semi Automatic facial tissue bundle packing machine

Name	XY-GU-26B Semi Automatic facial tissue bundle packing machine
Packing length (mm)	210-500
Packing width (mm)	260-400
Packing height (mm)	100
Material of film	Pre-made PE plastic bag
Finished Products	facial tissue
Warranty	1 Year Excluding Wearing Parts
Function	Packing machine
Packing type(bag)	23, 24, 2*5
Air supply	0.6MPA

Cheap price 10 bags bundle drawing facial tissue V fold paper machine production line

Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:

1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
